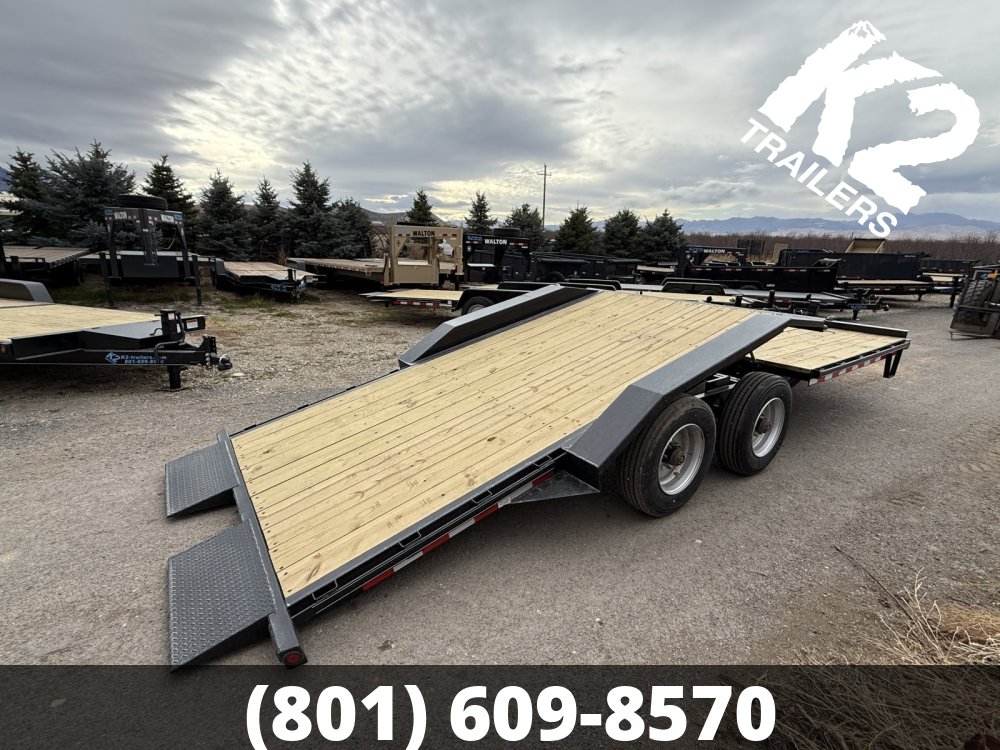

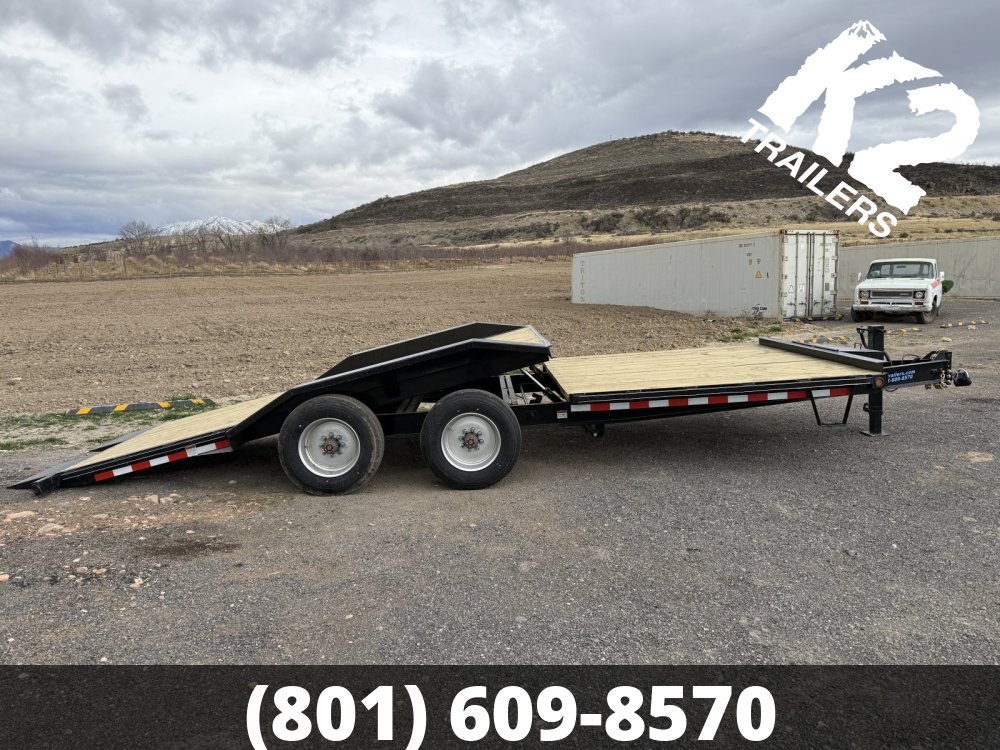

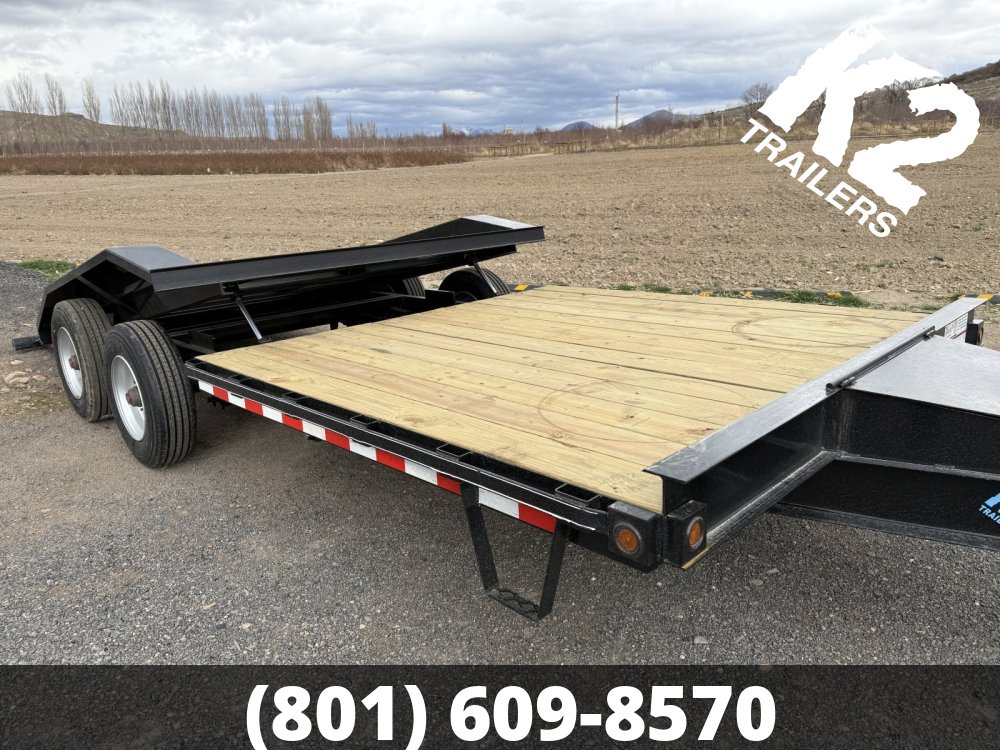

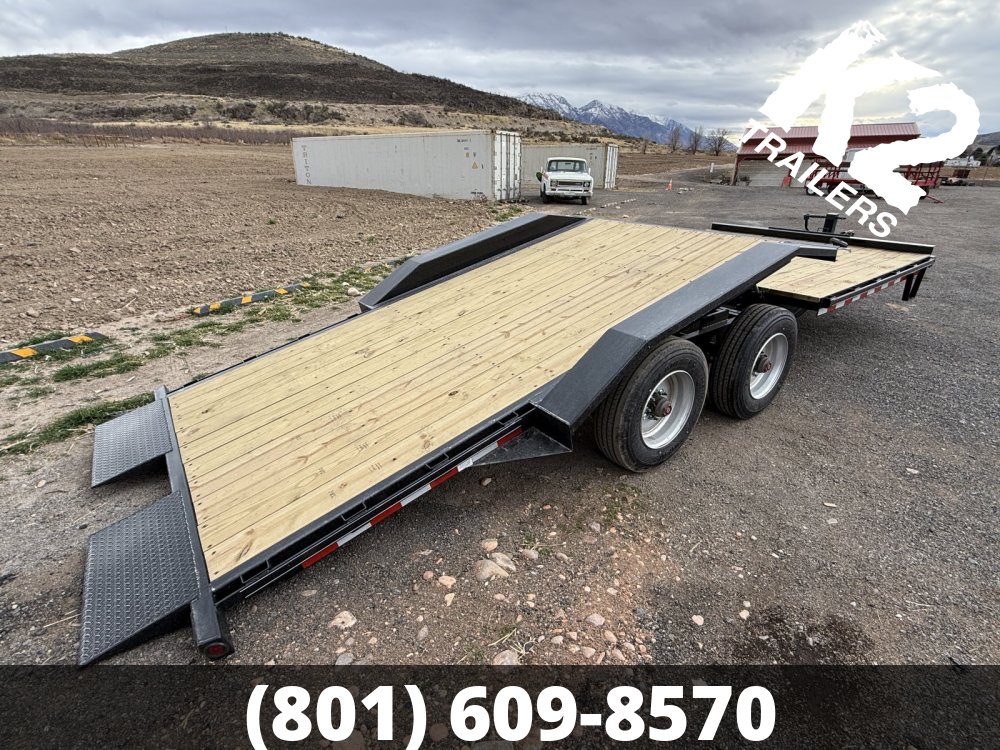

8x22 K2 Trailers 22' 23K Wood Tilt Deck Tilt Deck

website: www.k2-trailers.com
Visit us on Facebook www.facebook.com/k2trailers/
We carry Teton, Snake River, Diamond C, Big Tex, Walton, PJ Trailers and mini excavators/skid steers.

The 23,000 GVWR Deluxe Wood Floor Tilt Equipment Trailer like all our other Deluxe models is fully equipped with all our best features. Equipment is getting bigger and heavier all the time. This trailer will haul up to an 18,200 lb. machine. It has 83 in. clear space between the heavy duty one piece fenders. The frame is 8 in. channel main frame and tongue. The frame and tongue are one continuous piece. The tongue is cold formed in a hydraulic press. The heavy duty running gear package features 10,000 lb. axles, HD slipper spring suspension, 235/17.5 tires and a super duty cast iron three bolt coupler. A tool box with a lockable lid, 17 in. cross-member spacing, stake pockets with a rub rail on the outside, and full reflective tape are all included. A US made sealed modular wiring harness with lifetime LED lighting assures trouble-free lighting on every 23000 GVWR Deluxe Wood Floor Tilt Equipment Trailer.

G.V.W.R.23,000 GVWR - 18,200 lb.
load capacity - empty weight 4,800 lb.
Electrical: Sealed modular wiring harness with LED lights
Frame: 8 in. Channel main frame and tongue with 3 in. channel crossmembers 17 in. on center HD 6 in. channel frame on rear tilting section Rail 6 in flat with stake pockets and rub rail on fixed section
Tongue: 8 in. Channel main frame and continuous cold formed tongue
Tires :235/75 R17.5
Floors: 2 in. Treated Wood
Coupler: Super duty cast iron 2 5/16 adjustable coupler
Safety Chains: Heavy duty safety chains
Ramps: 29 in. Wide x 16 in. long beveled extensions
Tie Downs: Stake pockets and Rubrails

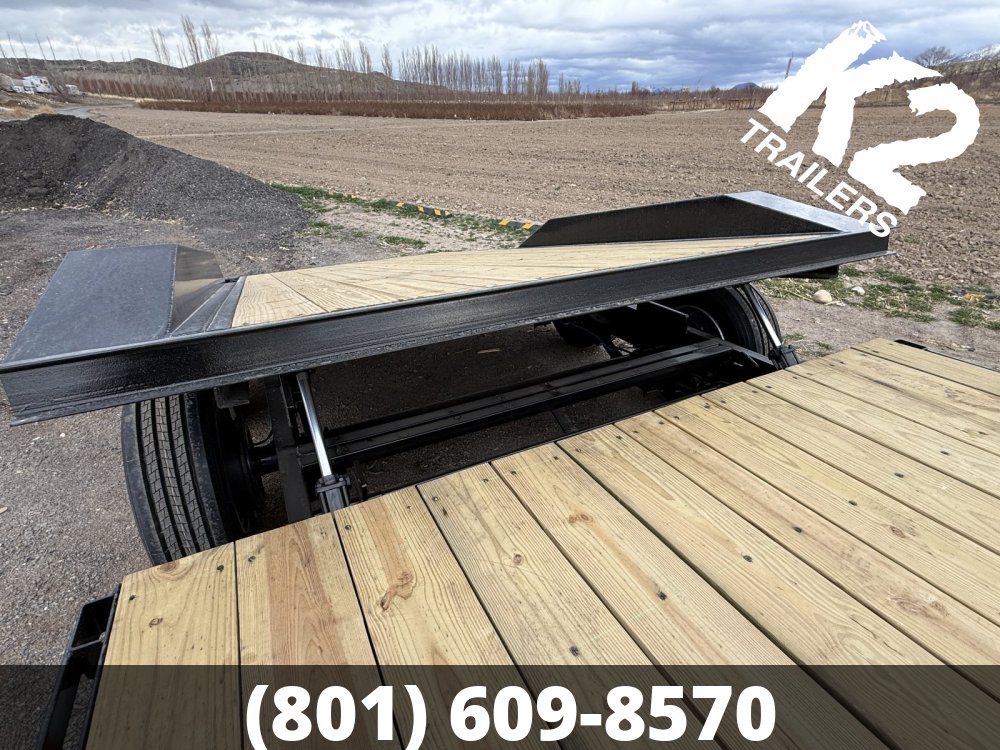

Deck Length: 22 ft. (8 ft. + 14 ft. tilt deck with dual hydraulic damping cylinders) 96 in wide x 8 ft long fixed front section
Deck Height :27 in empty height
Deck Width :83 in. between fenders - 96 in. wide on 8 ft. long fixed front section
Fenders: 1 piece HD fenders - 3/16 thick
Brakes : All wheel electric brakes - 3 3/8 x 12 1/4T
Wheels: Silver solid disk
Jack: 12,000 lb. Drop foot jack
Axles: 2-10,000 lb. oil bath axles
Suspension: Slipper springs
Toolbox: Chain box with lockable lid
standard Finish Primed, 2 coats of automotive grade enamel, pin striped
