G.V.W.R. 25,000 lb. Load capacity 19,000 lb. with 6,000 lb. hitch load.

Deck Length 30 ft. (27.5 ft. flat + 2.5 ft. dovetail)

Deck Height 36 in. With side steps standard

Deck Width Maximum 102 in.

Electrical Sealed modular wiring harness with LED lights

Frame 12 in. Pierced i-beam, with 3 in. channel crossmembers 16 in. on center

Dovetail 2.5 ft. with wedge shaped lay-flat ramps

Side Rail 6 in. channel

Tongue 12 in. I-beam gooseneck

Tires 235/80 R16 LRE (3,097 lb.)

Floors 2 in. Treated Wood

Coupler 2-5/16 in. 25,000 GVWR adjustable ball coupler or SAE 2 in. kingpin

Safety Chains Heavy duty safety chains

Ramps 3 - 30 in. lay-flat wedge shaped ramps

Tie Downs Stake pockets and Rubrail

Brakes All wheel electric brakes

Wheels Heavy duty bud style dual wheels

Jack Dual 12,000 lb. drop foot jacks

Axles 2- 10,000 lb. Oil bath axles

Suspension Slipper springs

Toolbox Chain box with lockable lid - second lockable box that contains hydraulic pump and battery.

Finish Primed, 2 coats of automotive grade enamel, pin striped

One Year Warranty

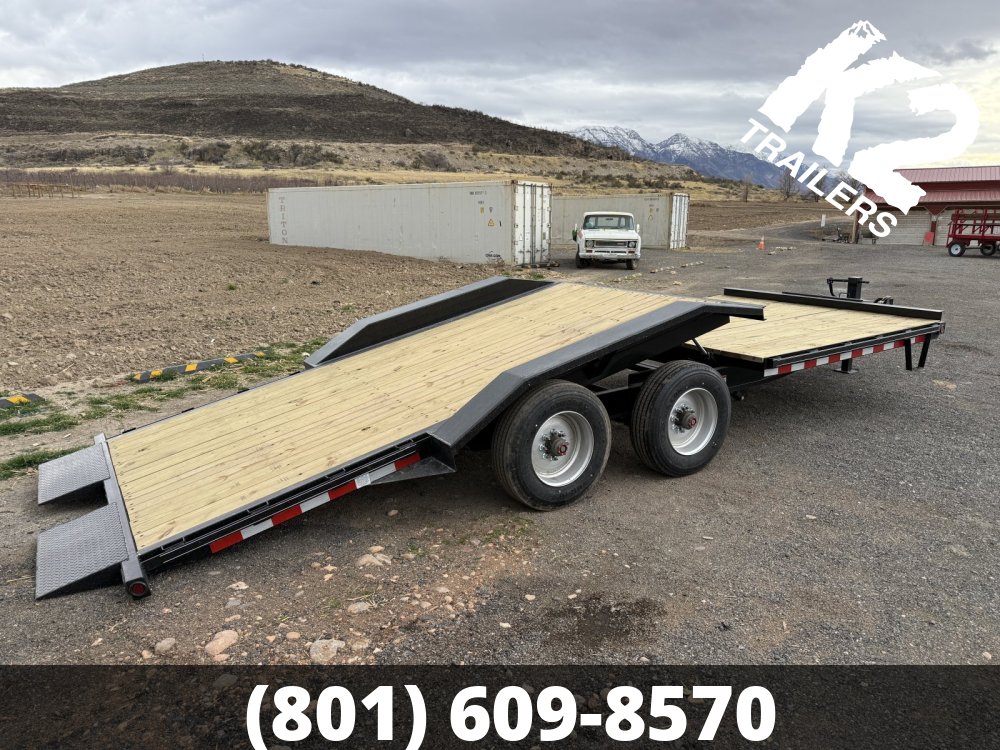

25K 8.5x30' K2 Trailers Tilt Deck
